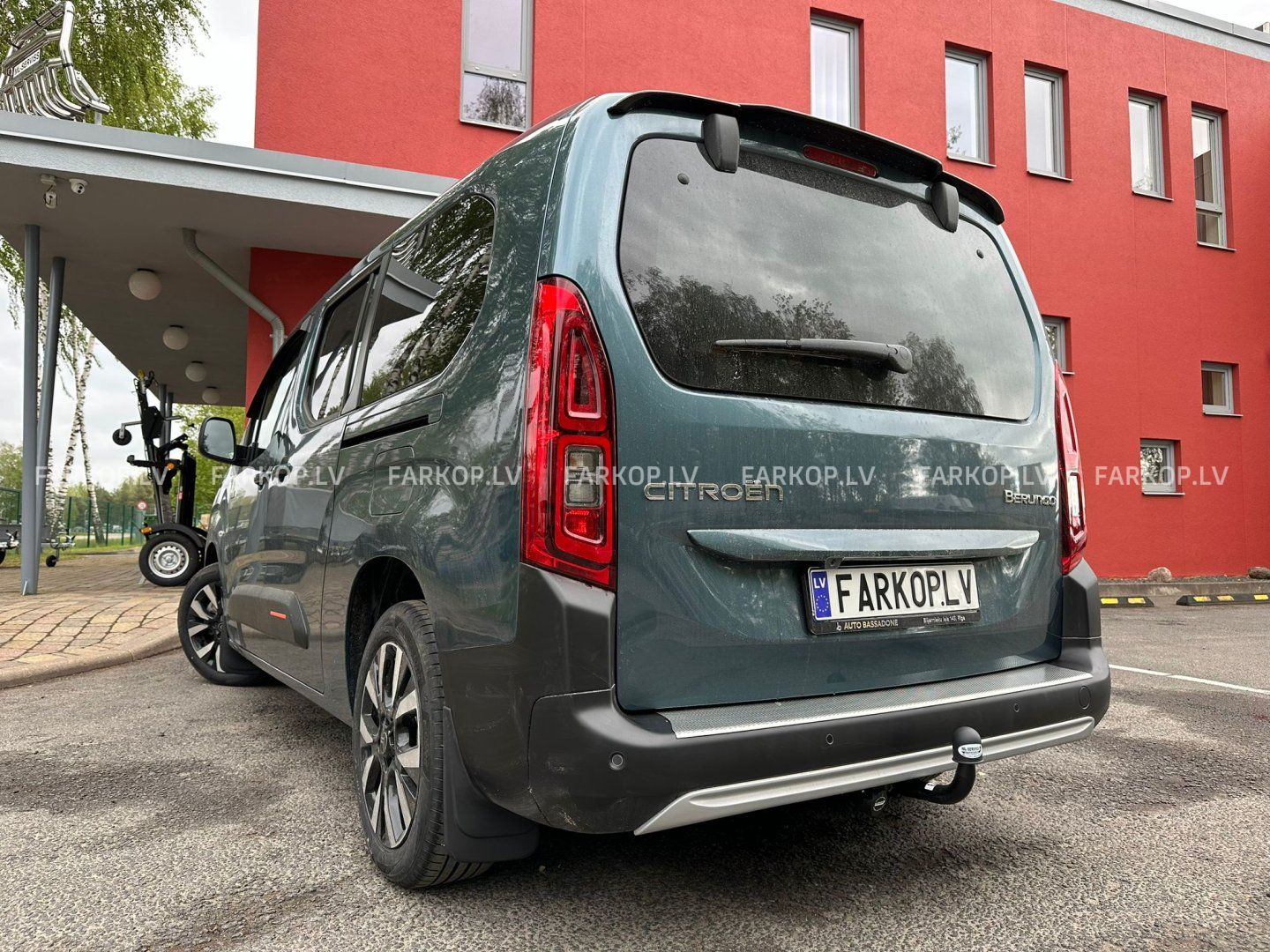

Auto sakabes āķis CITROEN BERLINGO,OPEL COMBO,PEUGEOT PARTNER/RIFTER,TOYOTA PROACE CITY/CITY Furgon

Description

The towbar is original, designed for a specific model.
-Included is everything necessary for installation
Options for electrical installation
- 12500637 - 7 PIN - oriģinal, 09.2018 >
- 21500637 - 13 PIN - oriģinal, 09.2018 >
- 737561 - 7 PIN - oriģinal, 07.2018>
- 747269 - 13 PIN - oriģinal, 07.2018>
- MP2D1 - 7 PIN - universal.
- MPWH3S-G13 - 13 PIN universal.



Semi-automatic towbar
Mechanism with quickly demountable ending

Body install:
1. Fix body of the mechanism to brackets by bolts M12x25mm.

Ball fastening:
1. To install the ball in mechanism push the lever down till resistance.
2. Slip the ball into body in this way so pins if the ball will be in nests of the body.
3. Let go the lever. It should return to initial position, this means correctly installed ball in the mechanism.
4. Put safety pin through lever's hole and bracket's hole. Correctly placed safety pin.

Ball unfastening:
1.To unfasten the ball take out the safety pin.
2.Push the lever down till resistance.
3.With fast move take out the ball. Let go the lever. It should return to initial position.
4.Put plug into the body. Plugs are in accessories of the towbar with quickly demountable ending.
