Towbar wire instalation kits
El.vadi
Code: MP2S-CANFD-G13
Electrical wires
WEB notes: CAN system
If you can't find a product that you need, please call us at +37129212095 or write to the email address: info@mlserviss.lv. We will contact you as soon as possible.
Additional information about product
MP2S-CAN-G13 CAN-Bus Towbar Wiring Kit.
The MP2S-CAN-G13 is a modern 13-pin towbar wiring kit designed for vehicles equipped with CAN-Bus systems. Unlike traditional trailer modules, the MP2S-CAN reads the required signals directly from the vehicle’s CAN-Bus network instead of connecting to the lighting wires. This significantly reduces the number of required connections and makes installation faster, safer, and more professional.
The kit provides full 13-pin trailer socket functionality, including permanent +12V power supply and an intelligent trailer battery charging system. Charging is automatically activated only when the vehicle engine is running, helping to protect the vehicle battery from discharge.
The MP2S-CAN-G13 is compatible with both LED and traditional bulb lighting systems for both the vehicle and trailer. The module supports trailer connection detection, trailer turn signal fault diagnostics, reverse light control, and rear fog light management.
The pre-assembled main wiring harness with integrated 13-pin socket greatly simplifies installation and reduces fitting time. Firmware updates are also possible using Bootloader software, ensuring compatibility with newer vehicle models and future feature improvements.
Key Features:
Direct CAN-Bus data reading from the vehicle system
Full 13-pin trailer socket functionality
Compatible with LED and traditional bulb lighting
Intelligent trailer battery charging
Trailer connection detection
Trailer turn signal fault diagnostics
Reverse light control
Rear fog light control
Quick and easy installation
Firmware update capability

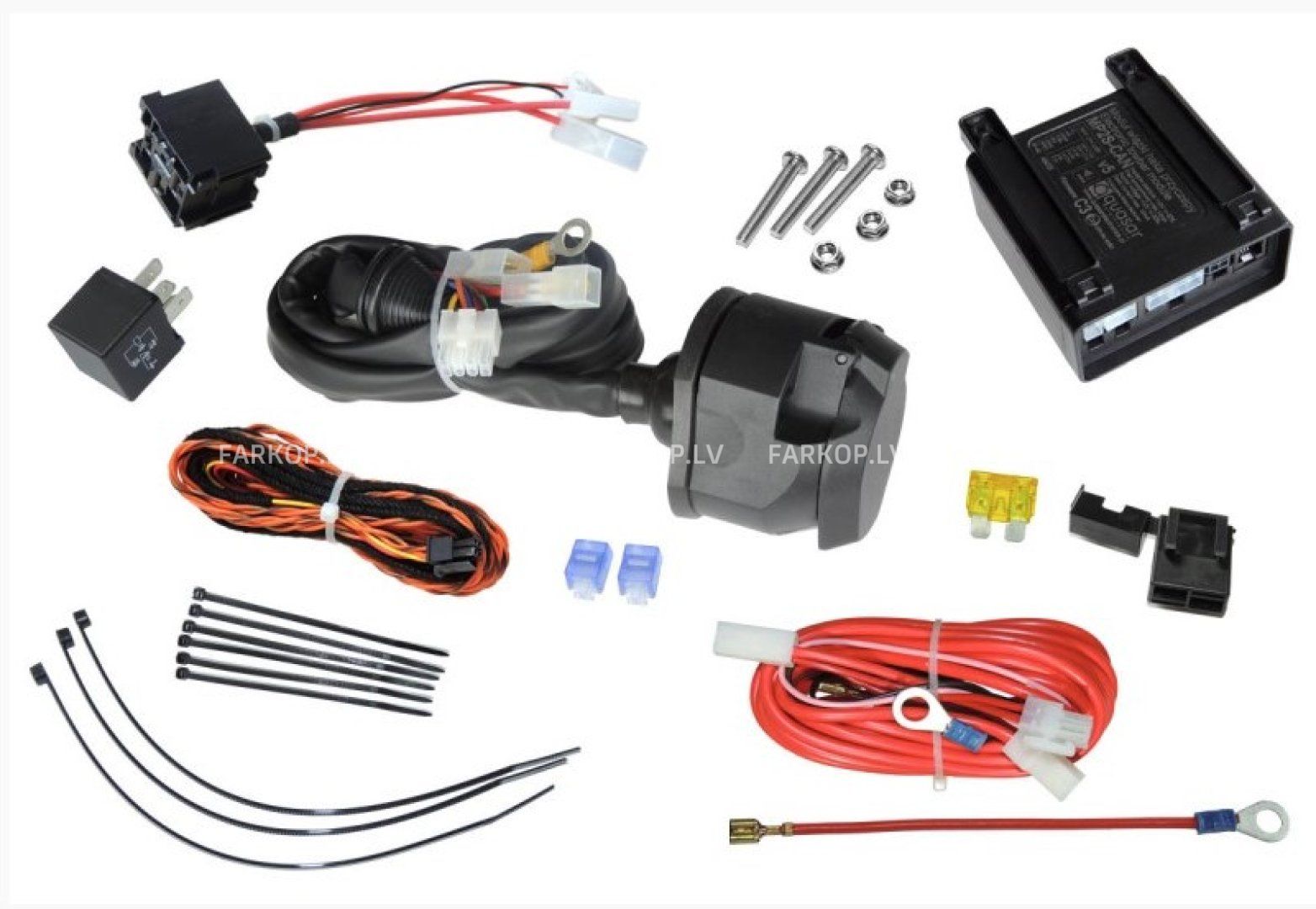

Package Includes:

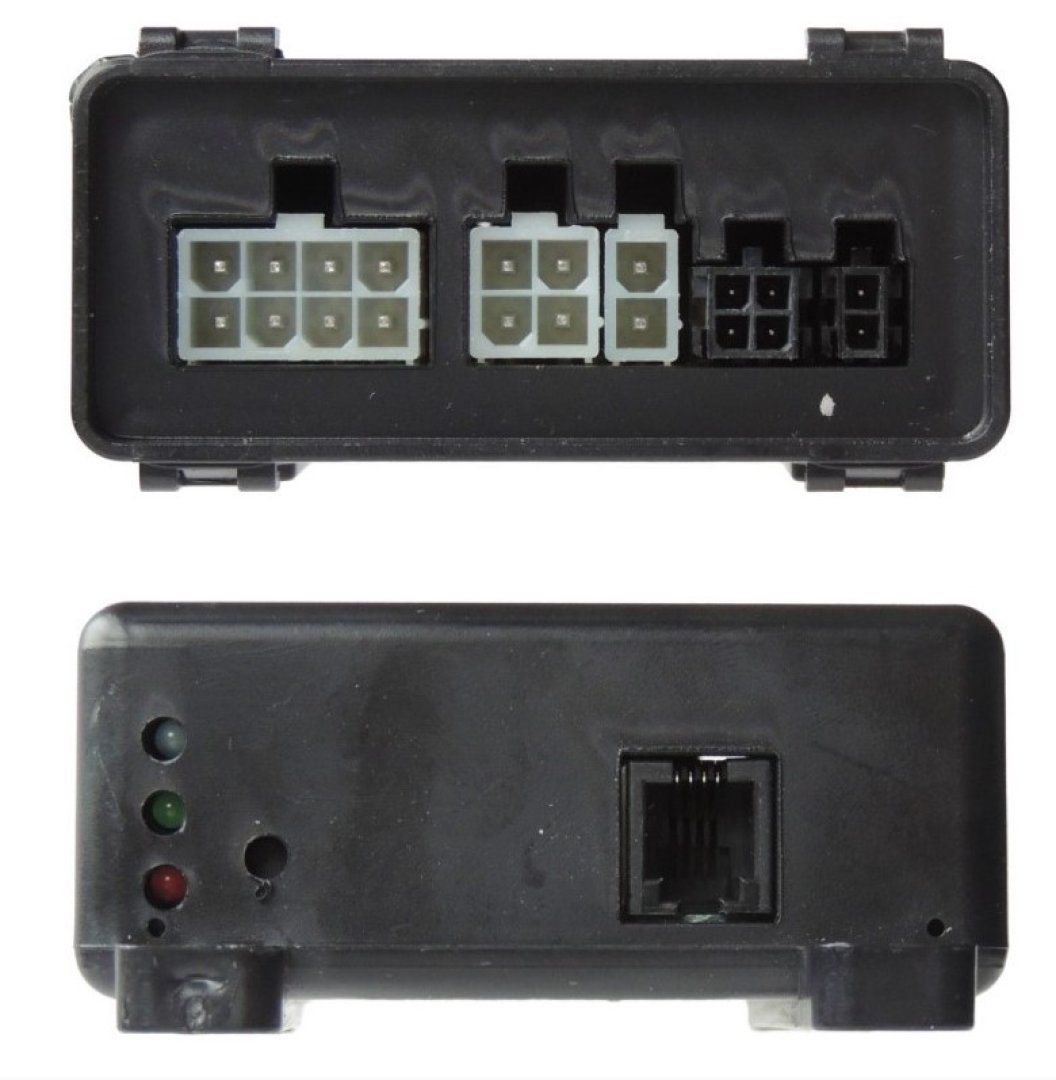

MP2S-CAN control module
Main wiring harness with 13-pin socket
CAN-Bus signal wiring harness
Power wiring harness
Relay and connection components for battery charging
Mounting kit
Wiring diagram
Applications:
Suitable for trailers, caravans, bike carriers, and other towing systems for vehicles equipped with CAN-Bus electronics.
Professional installation by a qualified workshop is recommended.
| Additional information | |
| Weight: | 1.0000 |
